Framing Details

Raised Wood Floor

Foundation Framing Details

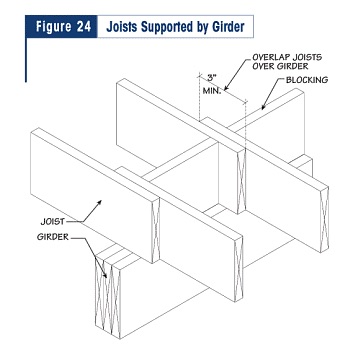

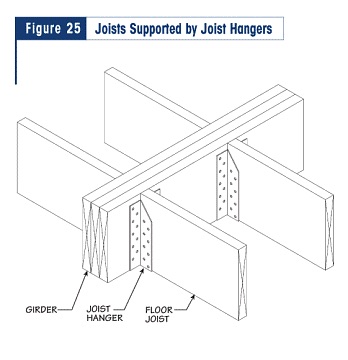

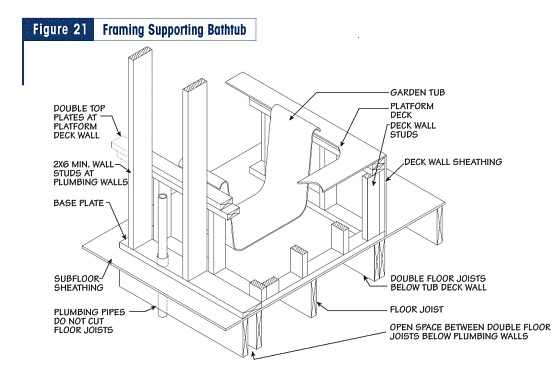

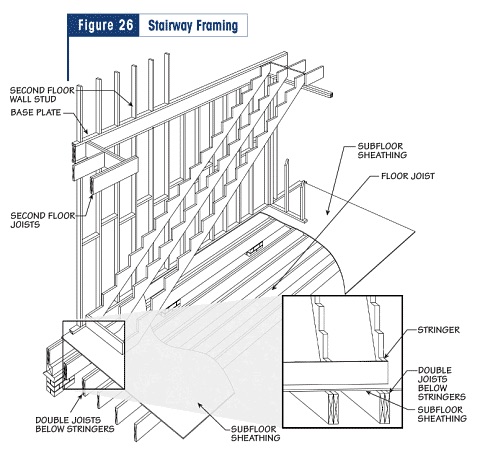

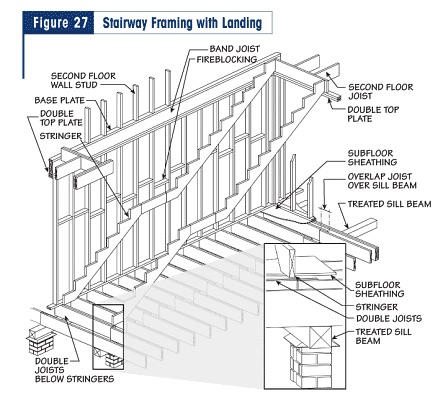

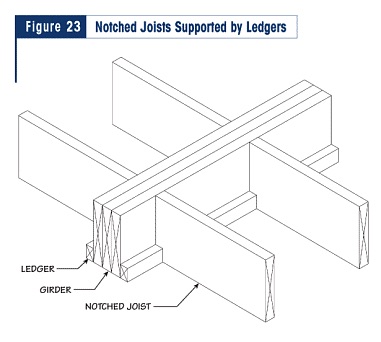

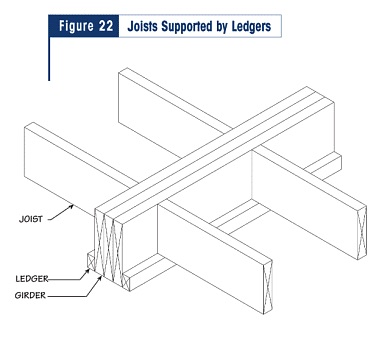

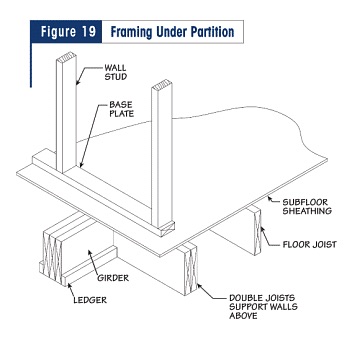

Figure 19, Figure 20, and Figure 21 provide floor framing guidance. Figure 22, Figure 23, Figure 24, and Figure 25 illustrate various methods for supporting floor joists. Figure 26 and Figure 27 provide stair framing assistance, with andemphasis on floor framing support.

Click the image to enlarge.
Click the image to enlarge.
Click the image to enlarge.
Click the image to enlarge.
Click the image to enlarge.
Click the image to enlarge.
Click the image to enlarge.
Click the image to enlarge.

Check out our Raised Wood Floor publication, a comprehensive design and construction guide for using Southern Pine for raised wood floor systems.
